SENKEN New SGD Series 8000mm Dual-Operation Electric Telescoping Mast For All-Weather Safety & Surveillance

SENKEN has launched its all-new SGD Series electric telescopic mast fitted with a screw and cable drive system, which overcomes the temperature and environmental constraints that plague pneumatic lifting masts. Designed to operate reliably in all weather conditions.

1. Dual Electric & Manual Operation

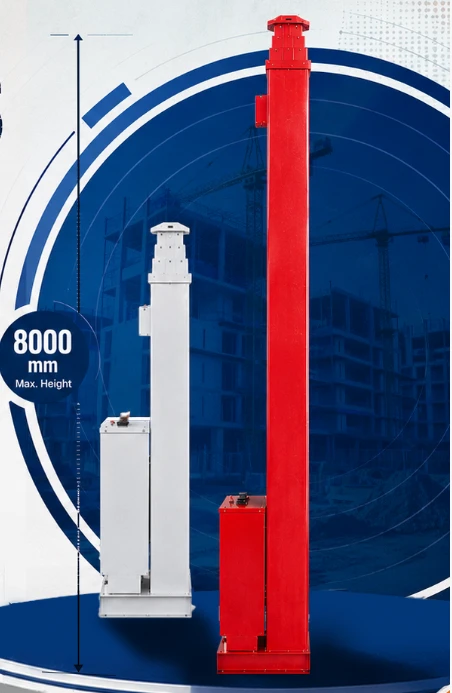

Designed to avoid power-outage downtime common with pneumatic masts, the mast features standard electric lifting plus a manual crank backup. Its 5-section structure hits a standard 8m height, with custom lengths from 2m to 15m available for diverse field scenarios.

2. Reliable Screw-and-Cable Drive System

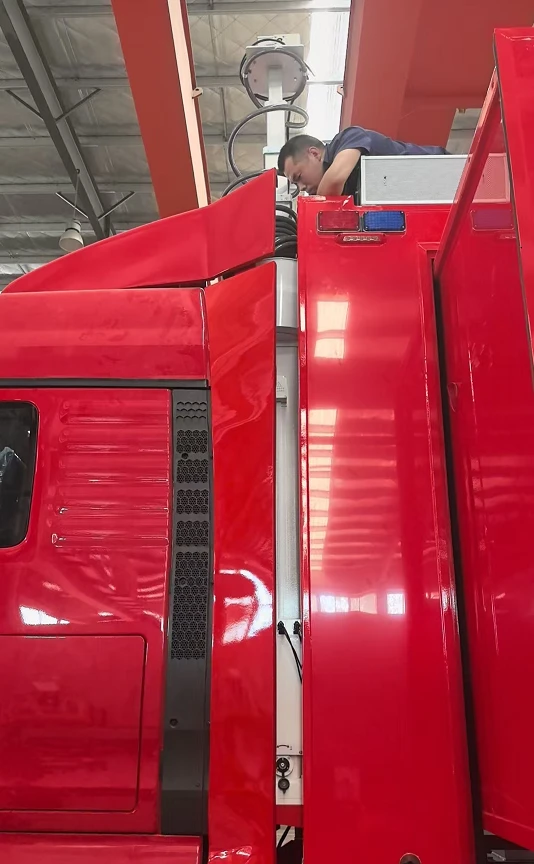

The innovative screw-and-cable drive eliminates leakage and frequent failures of pneumatic models. Built-in positive locking holds the mast stable at any height to securely mount cameras, antennas and emergency lights.

3. All-Weather Wind-Resistant Build

Crafted from anodized 6063 aluminum alloy, the mast withstands Grade 10 winds. It operates from -20°C to +55°C, with an optional -40°C cold-resistant version for extreme cold regions. Perfect for border patrol, disaster rescue and roadside monitoring.

Core Technical Specifications

Operating Voltage: AC220V

Motor Power: 370W

Collapsed Height: 2100±10mm

Max Extended Height: 8000±100mm

Max Payload: ≤50kg

Total Weight: ≤85kg

Stowed Size: 2241×2773mm

Control: 2.5m wired controller + manual crank

Customization: RAL colors, adjustable heights, low-temperature variant
