NEW PRODUCT LAUNCHING---LTE2705 LIGHTHEAD

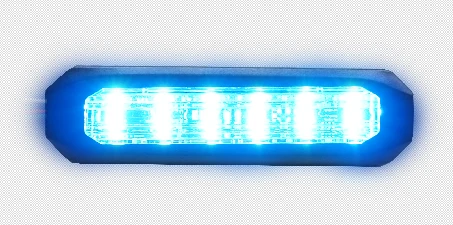

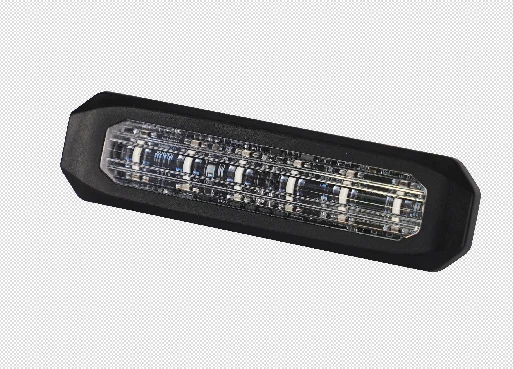

Image：

Features:

1. Using high-power 5W high-efficiency LED, it has long service life and high brightness, and meets R65 class 2, R10 and other standards;
2. The installation screws are hidden in the appearance design, the whole lamp is ultra-thin, the light source structure is compact, and it is easy to install. It has 11 flash modes and comes with a cruise mode;
3. Multiple lamp bead color options of red, blue, yellow and white, supporting two-color and three-color
4. The series of synchronization functions makes the whole vehicle better.
5. The lampshade is made of UV-resistant, yellowing-resistant polycarbonate (PC2807) material, which effectively resists ultraviolet radiation;
6. It has a number of EMC\EMI (electromagnetic transient immunity, electrostatic discharge immunity, etc.) protection properties and strong anti-interference ability;
7. The aluminum alloy high-performance heat dissipation base is used to delay light decay and extend the life of the warning light.
8. Sealed using automated gluing process, the protection level of the police light can reach IP67.

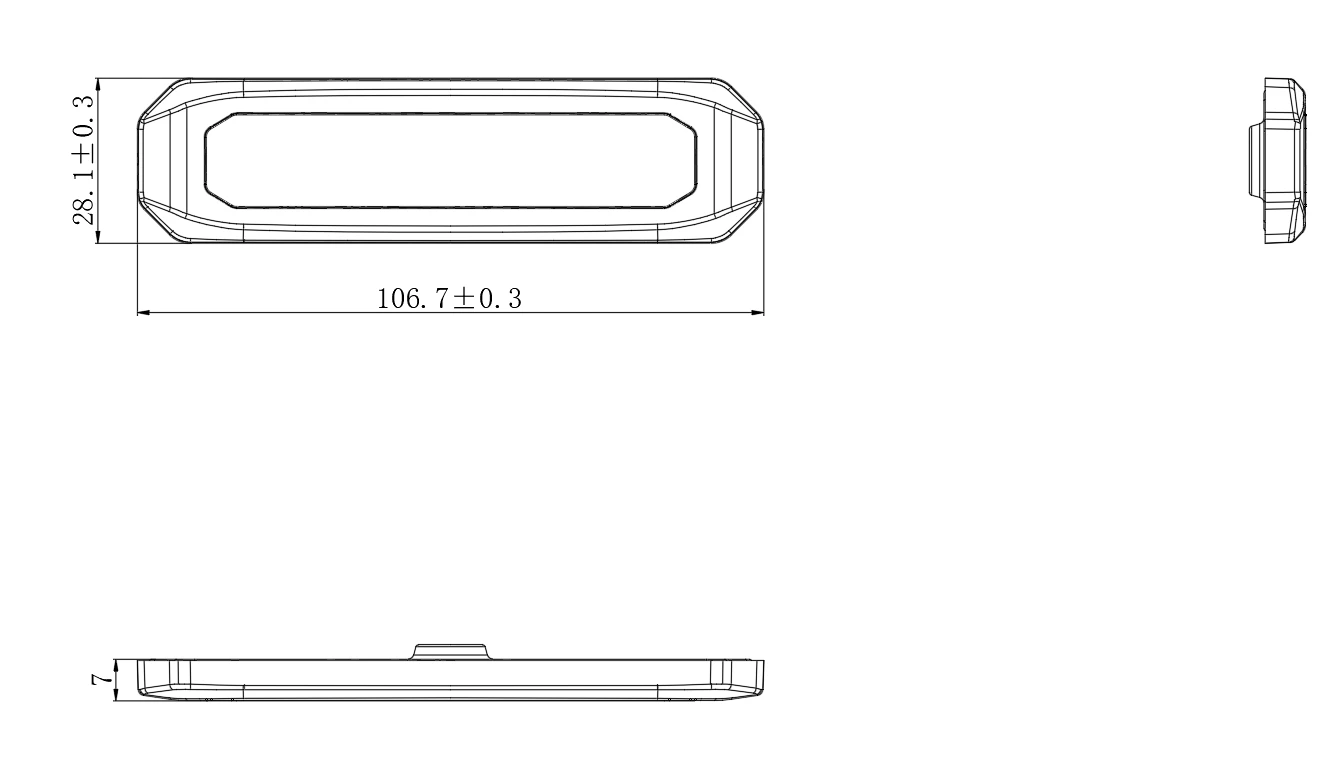

Product Drawing:

Weight(Kg)：32g

Technical Specifications:

Rated voltage: DC 10–30V

Rated power: ≤15W

Operating temperature: -40 to 75°C

Waterproof rating: IP67

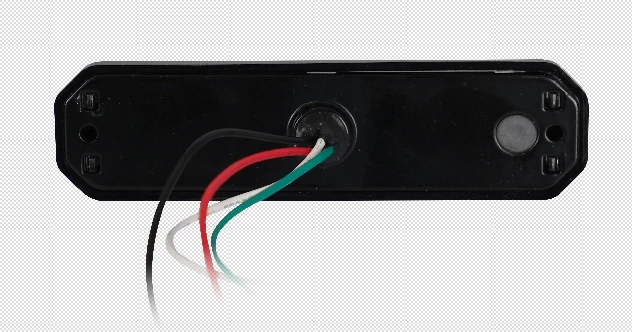

Wiring Description:

White wire: Cruise (steady on)

Red wire: Positive (flashing)

Black wire: Negative

Green wire: Mode switching wire + synchronize

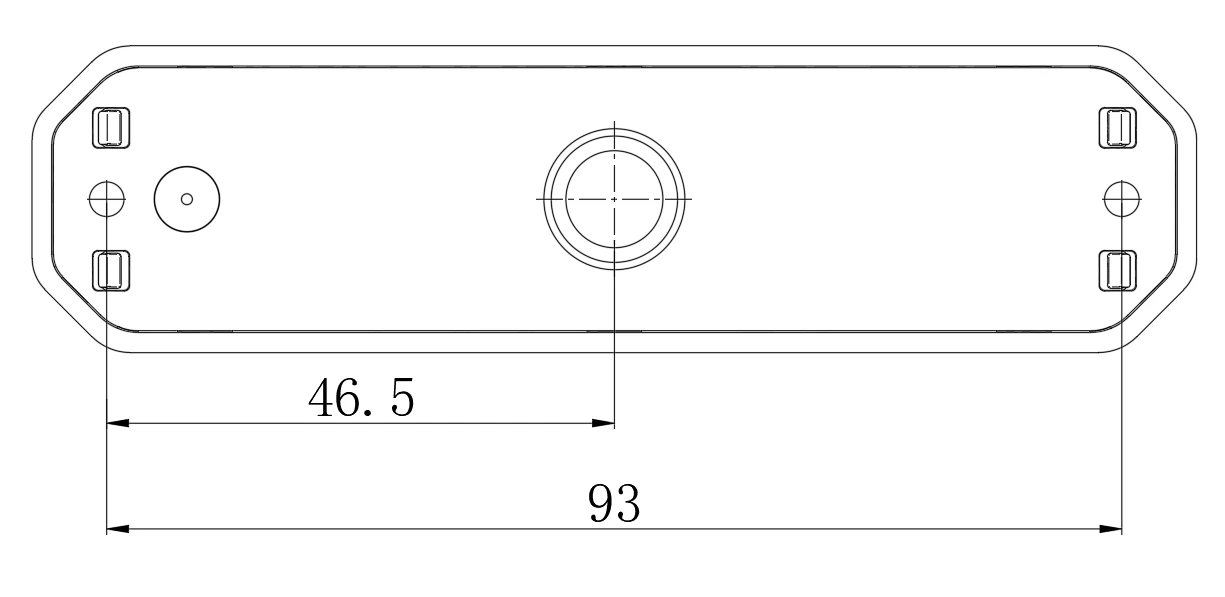

Installation dimensions:

Product packaging information:

Inner box：145×120×50mm 2pcs/inner box

Outside box：655×300×300mm 100pcs/outside box
