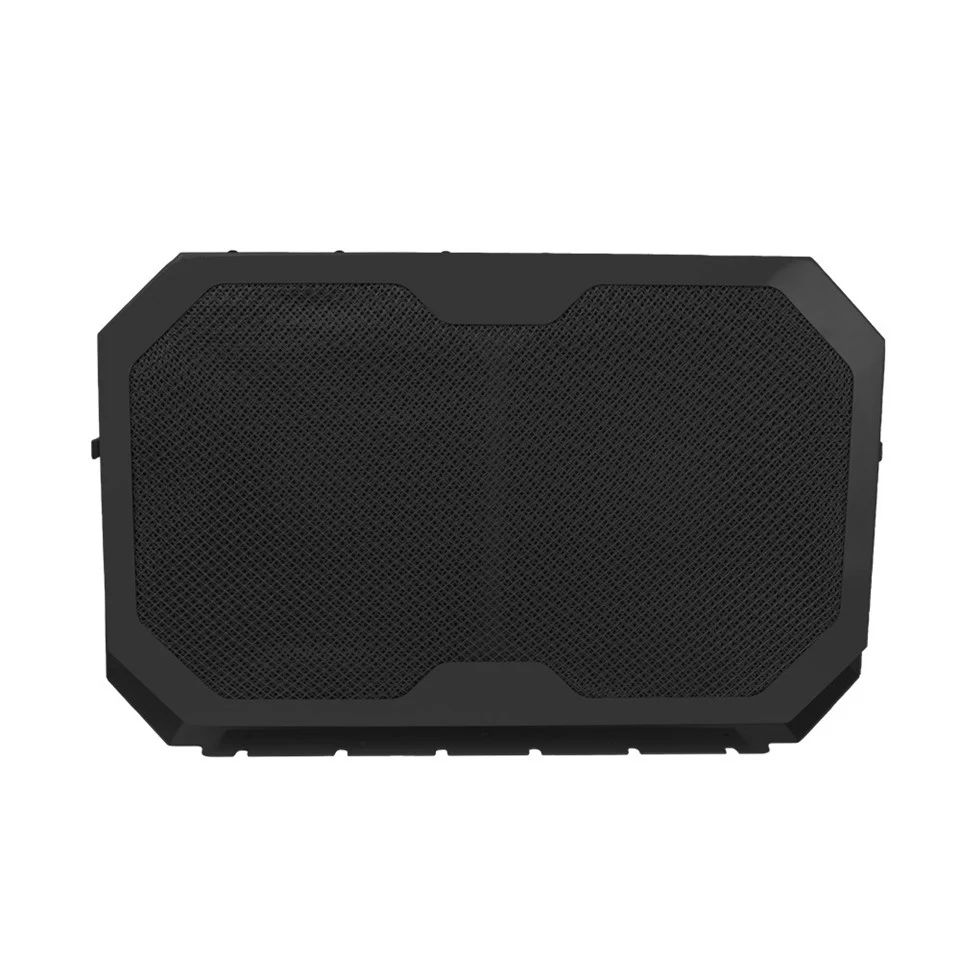

CKY-200-SK01 Vehicle Mounted Directional Strong Sound Broadcasting System
The use of a parabolic waveguide surface makes the directionality of the unit sharper, with a sound beam angle of ±8°, achieving directional transmission of sound waves, which is beneficial for dispersing impacts.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Well-known as one of the leading and professional manufacturers and suppliers of CKY-200-SK01 Vehicle Mounted Directional Strong Sound Broadcasting System, we warmly welcome you to contact our factory to buy the high-end and quality equipment. We will offer you good after-sale service and fast delivery.
Strong directionality
The use of a parabolic waveguide surface makes the directionality of the unit sharper, with a sound beam angle of ±8°, achieving directional transmission of sound waves, which is beneficial for dispersing impacts.
High definition
Based on the frequency response characteristics of the speaker, a solid-state DSP sound multimedia player is built-in, with a speech clarity of 85%, resulting in both good dispersion effect and good music effect.
High sound intensity
Using the latest integrated digital chip from TDA series, the electrical power is fully converted into sound power with high efficiency. The maximum peak sound pressure level reaches 142dB.
Main performance parameters:
|
System operating voltage |
DC9-36V |
|
Maximum power |
200W |
|
Working current |
≤15A |
|
Directionality |
±9° |
|
Peak sound pressure level |
142 ± 2dB |
|
Speech clarity |
96% |
|
Protection level |
IP65 |
|
Features |
Bluetooth, USB, recording and playback, alarm sound, voice broadcasting, real-time call out |
|
Effective transmission distance |
200 meters |
|
Weight |
20KG |
|
Equipment working environment temperature |
-30°C ~ 55°C |
|
External dimensions |
632 * 398 * 226mm |
