YD-100-30 Speaker
video
YD-100-30 Speaker

YD-100-30 Speaker

1. 100 Watt compact speaker 2. Slim and Low profile design 3. Optimum performance with highest sound pressure 124dB 4. Waterproof, corrosion resistance, good sealing

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

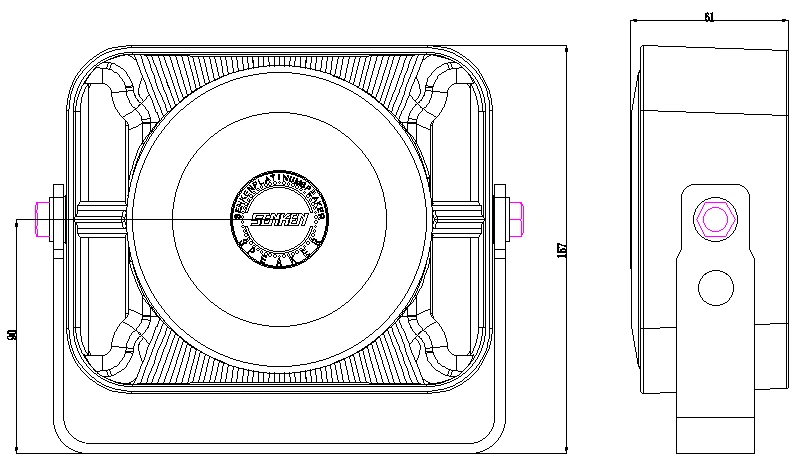

Product Dimensions

product-801-467





































Wiring Harness Connection Diagram

product-529-248

Main technical parameters
Model YD-100-30
Rated power 100W
Rated Impedance 8Ω/11Ω
Frequency Range 200-5000HZ
Distortion ≤5%
Sound pressure level ≤124dB
Operating temperature -40℃ —+65℃
Dimension 156*128*57（mm）
Features

1. 100 Watt compact speaker

2. Slim and Low profile design

3. Optimum performance with highest sound pressure 124dB

4. Waterproof, corrosion resistance, good sealing
